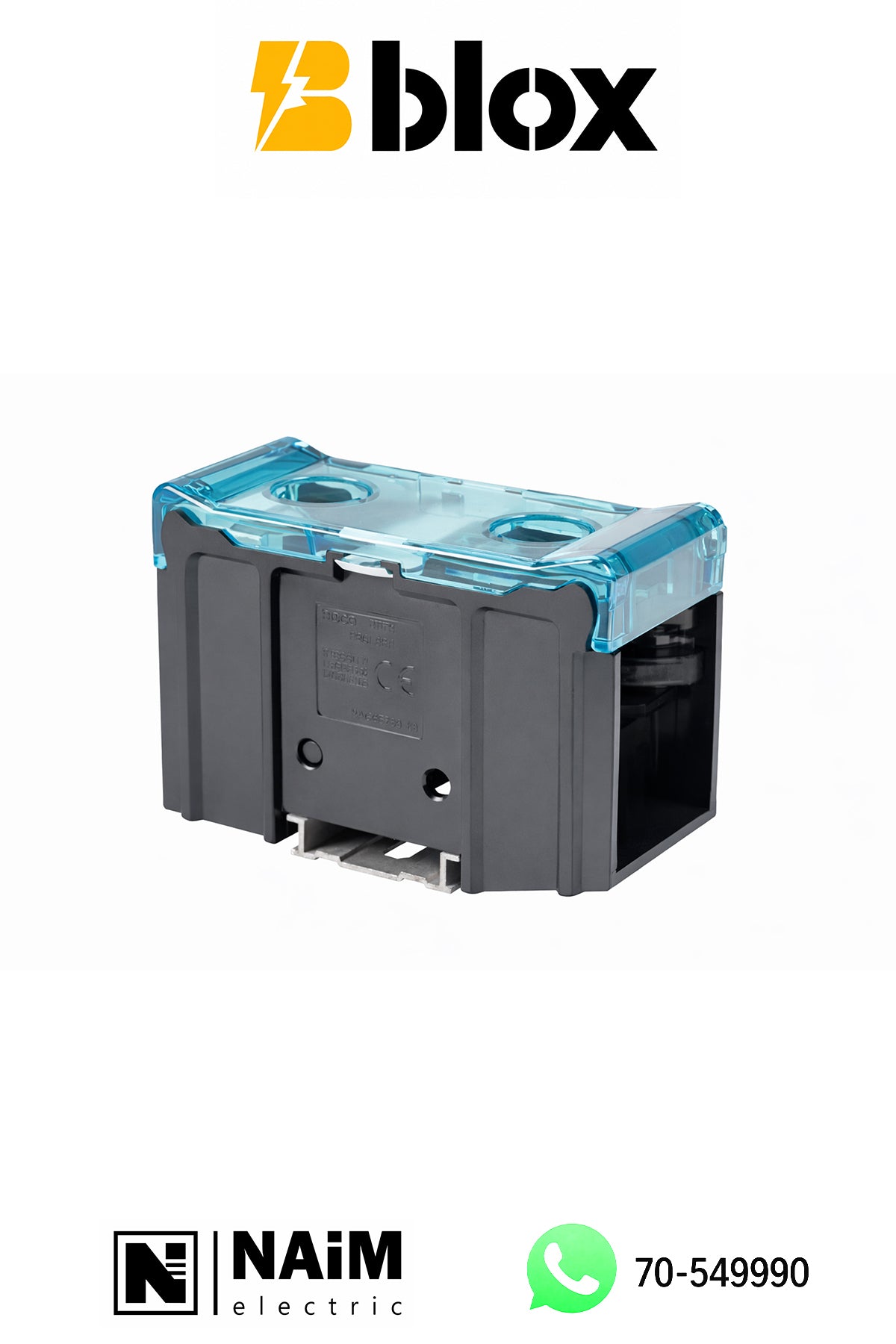

FJ611S-22mm
Description
The FJ611S-22mm Terminal Block is a robust DIN rail connector designed for secure and efficient cable termination in electrical panels. With a 22mm profile, it provides enhanced capacity while ensuring strong conductivity and reliable performance.
Material
- Dimensions (mm): 22 × 65 × 47
- Screw: M6, zinc-coated steel
- Conductor: Nickel-coated brass
- Housing: PC (Polycarbonate)
🔹 Electrical Data
- Standards: JIS C 2811 / UL 1059
- Voltage: 600 V
- Current: 94 A
- Dielectric Strength: 2500 V AC, 1 minute
🔹 Wiring Data
- Metric Wire: 22 mm²
- Imperial Wire: AWG 8 ~ 4
- Torque: 3.9 ~ 5.4 N·m
