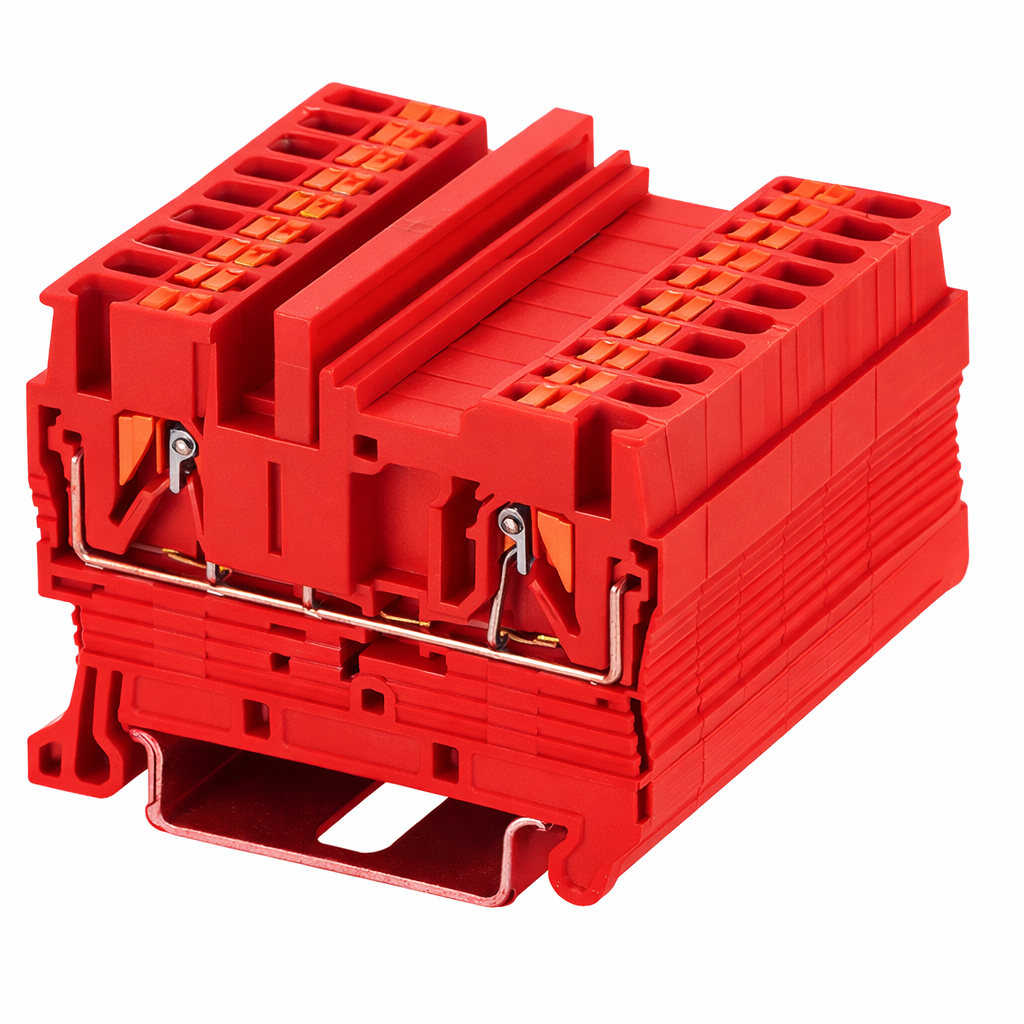

FJ7-4

The FJ7 Spring Type Junction is a high-performance DIN rail terminal block designed with spring-clamp technology for fast, secure, and vibration-resistant wiring connections. It ensures reliable conductivity and easy installation without the need for screw tightening.

MATERIAL
Size(mm)                     : 6.2x56x35.3
Clamping Spring         : Stainless Steel
Conductor                   : Tin-Coated Copper
Housing                       : PA66/V-0

ELECTRICAL DATA
Impulse Voltage(kV)    : 8
Standards                    : IEC 60947-7-2 UL 1059
Voltage(V)                    : -
Current(A)                    : -

WIRING DATA
Strip Length(mm)         : 10~12
Metric Wire(mm²)         : 0.2~4
Imperial Wire(AWG)      : 24~10
Connection Points         : 2
