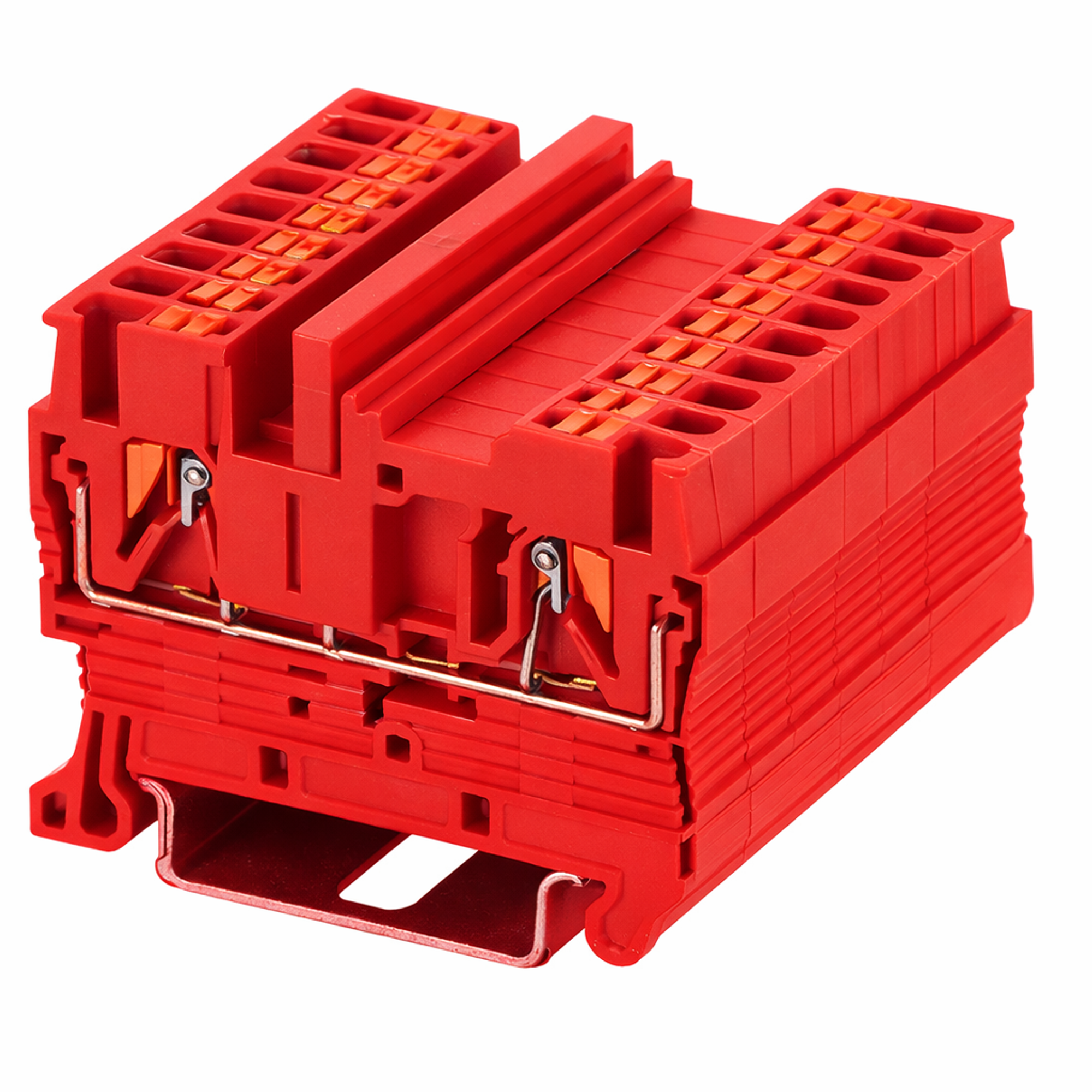

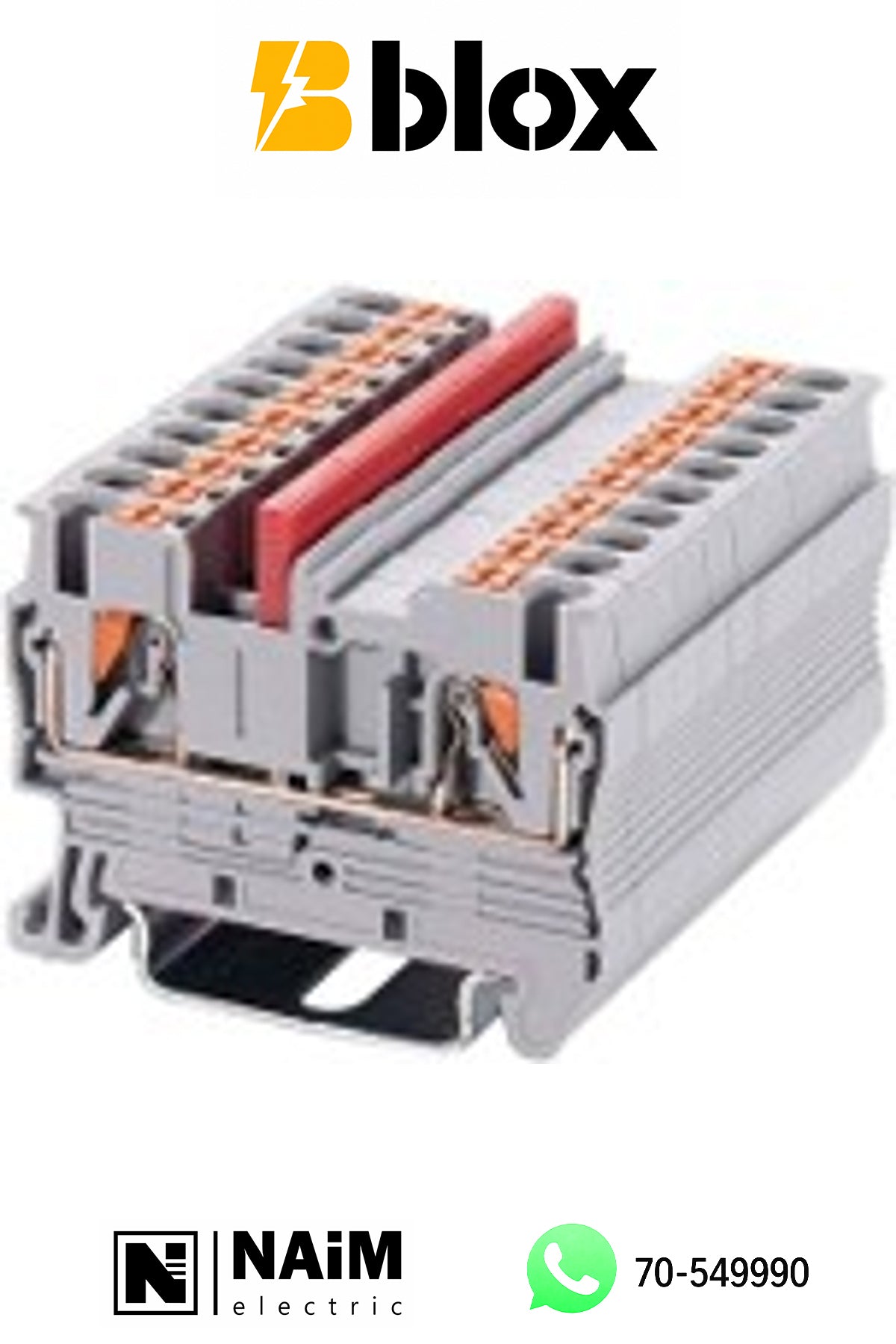

FJ7-2.5

The FJ7 Spring Type Junction is a high-performance DIN rail terminal block designed with spring-clamp technology for fast, secure, and vibration-resistant wiring connections. It ensures reliable conductivity and easy installation without the need for screw tightening.

MATERIAL
Size(mm)            : 5.2x48.6x35.3
Clamping           : Spring Stainless Steel
Conductor         : Tin-Coated Copper
Housing             : PA66/V-0

ELECTRICAL DATA
Impulse Voltage     : (kV) 8
Standards               : IEC 60947-7-1 UL 1059
Voltage(V)               : 800 - 600
Current(A)               : 24 20

WIRING DATA
Strip Length(mm)     : 8~10
Metric Wire(mm²)     : 0.14~2.5
Imperial Wire(AWG)  : 26~12
Connection Points     : 2
