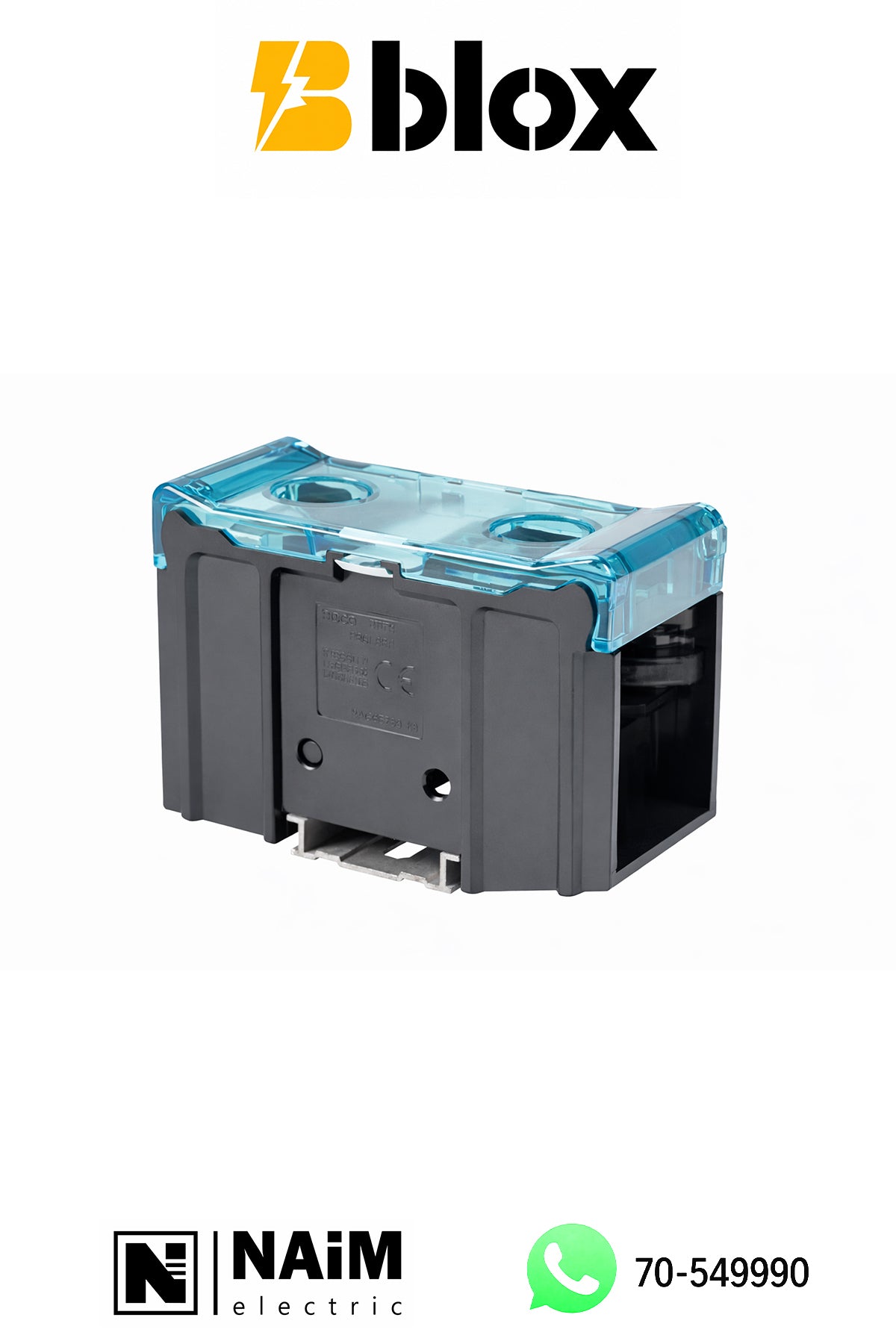

FJ811S-100mm
Description
The FJ811S-100mm Terminal Block is an extra heavy-duty DIN rail connector engineered for large-capacity power distribution. With its 100mm profile, it provides maximum clamping strength, superior conductivity, and reliable performance in high-load electrical systems.
Material
- Dimensions (mm): 42 × 85 × 62
- Screw: M8, zinc-coated steel
- Conductor: Nickel-coated brass
- Housing: PC (Polycarbonate)
🔹 Electrical Data
- Standards: JIS C 2811 / UL 1059
- Voltage: 600 V
- Current: 240 A
- Dielectric Strength: 2500 V AC, 1 minute
🔹 Wiring Data
- Metric Wire: 100 mm²
- Imperial Wire: AWG 2
- Torque: 21 ~ 28 N·m
